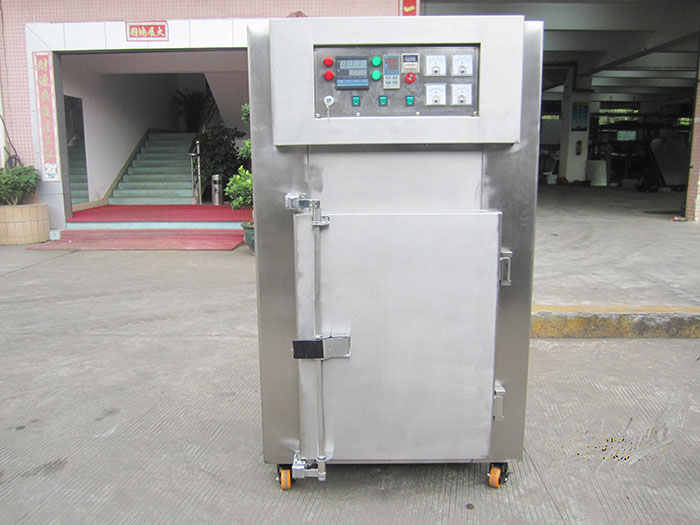

Industrial oven name: food industrial oven

Inner tank size：W0.5M,H0.68M,D0.5M；

Dimension：W0.8M，D0.65M，H1.5M；

Temperature range：Indoor temperature-200℃（normal use）；

Heating rate：Heat up to 150℃ ≈10min

Temperatue：±2%(No load test)

Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;

Adopt  controller of intelligent temperature, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for enclosure;

The internal cleanliness can reach a level of clean environment;

Double overtemperature protection, more reliable safety;

Design the air duct of the oven according to the product features, with good temperature uniformity;

Fast heating time, accurate temperature stability

Thermal insulation of Domestic first-class , thermal insulation technology, seal effect remarkable;

Low enclosure temperature has little effect on indoor environment temperature.

Energy and power saving,strong safety performance;

Gross power：3KW(380V 50HZ)。
