Successful cases in the medical, food and pharmaceutical industries

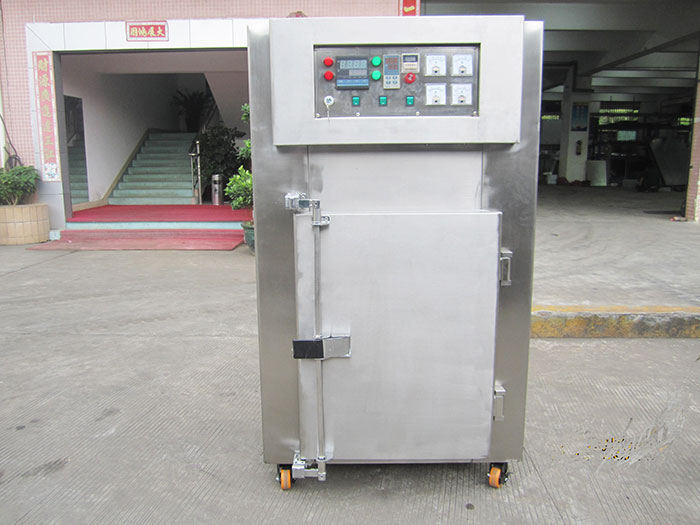

Industrial oven name: medical oven
Inner tank size：W530*D1350*H400（mm)；
Dimension：W970*D1480*H1510 (mm)
Temperature range：Indoor temperature-250℃（normal use）
Heating rate：≤8℃/min
Temperature uniformity：±1.5%(no load test)
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.
Inner liner material adopts mirror 304 stainless steel plate;The outer enclosure is made of 2.0mm cold binding plate, with high temperature drying molding on the surface (anti-static and corrosion);
The internal cleanliness can reach a level of clean environment;
Silica gel compacted of High temperature resistant , beautiful and pollution-free;
Design the air duct of the oven according to the product features, with good temperature uniformity;
Fast heating time, accurate temperature stability
Thermal insulation of Domestic first-class , thermal insulation technology, seal effect remarkable;
Low enclosure temperature has little effect on indoor environment temperature.
Applicable to screen, LED, touch screen, drying
Energy and power saving,strong safety performance;
Gross power：13KW(380V 50HZ)。
