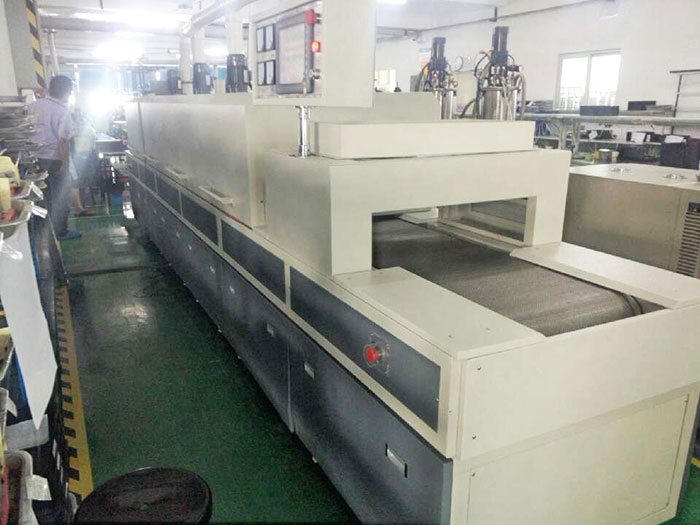

Tunnel ovens

1、Inner tank size：drying area，L5400*H300*W800mm；

2、External dimension (about) : the total length is 9000mm* total height is 1550mm* total width is 1040mm, the height from ground to network belt is 850mm, the inner width of product conveyor belt is 800mm, and the height of feed material is 300mm;The total length of drying part is 5400mm, and the adjusting baffle is arranged front and rear drying area.The feeding part is 1800mm long and the discharging part is 1800mm long.

3、Indoor temperature～'250℃

4、the precision of the instrument shows：≤±0.1℃；

5、temperature fluctuation degree：≤±1℃；

6、Temperature uniformity：≤±5；

7、Heating rate：≤8℃/min

8、Enclosure temperature:Enclosure temperature is not higher than room temperature ' 20 ℃, except the seams and the oven temperature;

9、Power supply: three-phase five-wire system，380V，50HZ；

10、Gross power：26KW。

1、Enclosure material: made by bending and welding of 2.0mm thick cold rolled plate (best comprehensive performance of strength, plasticity and welding);

2、Surface treatment: surface grinding, polishing and phosphating (can increase corrosion resistance of metal and adhesion of paint);High temperature spray (large corrugated) can prevent rust and corrosion.Color: "computer grey"

3、Inner tank material: made of 1.5mm thick SUS304 stainless steel plate;Keep the inner tank clean and free of dust, prevent rust and corrosion;

4、Furnace body underframe: the furnace body is made of 50*50*2.0mm square, and the bearing strength of each surface inside and outside the furnace body is maintained, and the heat expansion and cold shrinkage coefficients are retained, which can prevent furnace body from deformation.

5、Thermal insulation material: 100K  rock wool of encrypted aluminosilicate with non-combustible and strong thermal insulation, with thickness of 120mm and thermal insulation layer at the bottom;

6、Ventilation device: exhaust port is provided above the furnace cover (equipped with two sets of fan frequency control), and air inlet port is provided at the top;

7、Transmission part: teflon cloth (color: brown) conveyor belt; speed motor: 1HP Taiwan yongkun reduction motor of gear ; 1HP Taiwan adeli frequency converter; 8、Foot cup: the bottom is equipped with adjustable foot cup, which is convenient for the furnace body to adjust the height

1、Air motor: 3 sets of air motor with Taiwan adeli 0.37kw;

2、Wind wheels: 3 sets of 9 inch wind wheels in multi-wing ;

3、Radiant heating: medium wave band coated infrared heating pipe is adopted for heating pipe;

4、Lamp holder: square welding system of stainless steel , with adjustable height up and down;

5、Controller of Temperature-controlled: it adopts Taiwan xuanrong H961 controller of digital temperature , with PV and SV dual LED display functions;With PID  output of automatic tuning algorithm,precise control.

6、Protection thermostat of Over temperature: the thermostat is an electrical intelligent thermostat, with PV and SV functions of dual LED display ;When the temperature exceeds the setting value of the thermostat, the heating power is automatically cut off.

7、Control of heating tube: using SSR relay control of solid state with each set of heat pipes, two separate control (a small power, customers using temperature is 70 °, 160 ° and 160 ° respectively;
8、Temperature sensor: Omron in standard of 3-meter , k-type thermocouple;

9、Others: all the control appliances are imported Schneider and Omron brands of Japan.

1、Automatic temperature: the temperature controller can be set according to the temperature value set by the user;PID is used to calculate the output power automatically. The closer the temperature is to the set value, the smaller the output power will be.

2、Over-temperature alarm: when the actual detection temperature exceeds the setting value of over-temperature protection thermostat  , automatically cut off the heating power and function of double protection

3、Audible and visual alarm: alarm lamp with buzzer;

4、Ground protection: safety ground protection of structural components;

5、Phase loss and phase sequence protection of power supply: equipped with phase sequence protector.

1、Environmental temperature：-5℃～'40℃；

2、Relative humidity：≤85%RH；

3、Power supplly：AC380V±10%，50Hz；

Free technical training
