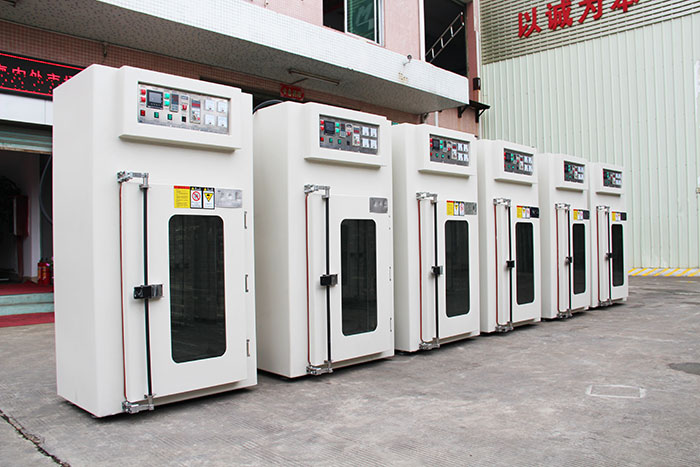

Industry oven of stomach test paper for Medicine industry
ⅠMain parameter about the industry oven of stomach test paper for Medicine industry
Inner size：W600*H1000*D500mm
Dimension（约around）：W1000*H1890*D630mm
Temperature range：55～'250℃
Temperature fluctuation：≤±1℃；
Temperature uniformity：≤±2℃
Heating rate：≥8℃/min；
The enclosure temperature: no more than the environmental temperature ' 15 ℃, surrounding the door.
Circulating air mode: horizontal circulating air;
Power supply: three-phase five-wire system, 380V, 50HZ
Gross power：6KW；
ⅡConstructional features about the industry oven of stomach test paper for Medicine industry
Enclosure material: it is made of 2mm thick Q235 cold rolled steel sheet (with best strength, plasticity and welding comprehensive performance)
The inner tank material is made of 1.5mm thick SUS304 stainless steel plate to keep the tank clean and free of dust, rust and corrosion.
The bottom plate: the bottom plate of the oven body is 10mm thick stainless steel plate, the track position is strengthened, the bearing weight is 300KG, and the track groove (the height inside the door is about 5mm low to prevent the opening product from being inverted) is shown in the attached figure
The frame is made of 50*50*3mm Angle iron to maintain the bearing strength of the inside and outside of the oven, and keep the heat expansion and cold shrinkage coefficient to prevent the oven from deformation.
Sealing material: the sealing strip is made of silica gel, which can withstand temperature without deformation. The door and inner tank are sealed in a double layer to enhance the sealing effect.
Door: single door,two pieces reinforced hinge of chrome plated are installed on the right side to prevent door droop, and one piece square steel lock of chrome plated in explosion-proof is installed on the left.Strong pretension, easy to operate, the door installed a perspective window, the size is 350*800mm.
Ⅲ Control system about the industry oven of stomach test paper for Medicine industry
1、Air motor: 1 yongyuan 0.75kw air motor, which can be adjusted by frequency conversion;
2、Wind wheel: 10.5-inch wind wheel of multi-wing stainless steel ;
3、Heating pipe: adopt u-shaped heating pipe of SUS304 stainless steel made in Taiwan, with heat radiator, which can make the temperature of heating pipe evenly distributed;
4、Air heating method: air is pumped from the air inlet of the oven to the air groove of the heating pipe. Air is circulated in the oven after being heated, and the exhaust gas is discharged from the exhaust port.
5、Ultra-temperature protection thermostat: adopt controller of intelligent temperature, PV and SV function of double LED display. When the temperature exceeds the setting value of ultra-temperature protection thermostat, automatically cut off the heating power.
6、Time control:Time controller of LED digital display can be set to the maximum time of 99 hours, and the unit can be arbitrarily switched to hours, minutes and seconds;
7、Heating tube control: each group of heating tube is controlled by SSR solid relay;
8、Temperature sensor: Omron in 3-meter standard, k-type of thermocouple;
9、Others: all the control appliances are under the schneider brand;
Ⅳ Function about the industry oven of stomach test paper for Medicine industry
1、Over-temperature alarm: when the actual detection temperature exceeds the setting value of the over-temperature protection thermostat, automatically cut off the heating power and double protection function;
2、Audible and visual alarm: alarm lamp with buzzer.
3、Earthing protection: safety earthing protection of structural components.
4、Phase loss of power and phase sequence protection: equipped with phase sequence protector
Ⅴ The enviromental condition of stomach test paper for Medicine industry
1、Enviromental temperature：-5℃-40℃；
2、Relative humidity：≤85%RH；
3、Power supply：AC380V±10%，50Hz；
Ⅵ The training of stomach test paper for Medicine industry
Free technical training.
