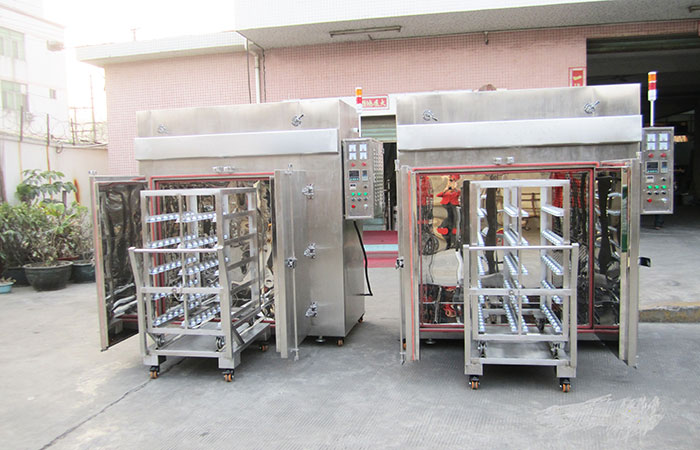

Drying oven for mother-child cart

Industrial oven name: sub - mother cabinet oven

Inner tank size：W1400*D850*H1300（mm)

Dimension：W1950*D990*H2210 (mm)

Temperature range：Indoor temperature-200℃（normal use）；

Temperature uniformity：±1.5%(no load test)

Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;

Adopt controller of intelligent temperature , PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of plate in mirror 304# stainless steel. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for outer enclosure;

The inner cleanliness can reach a level of clean environment

Double overtemperature protection, more reliable safety;

Design the air duct of the oven according to the product features, with good temperature uniformity;

Thermal insulation of Domestic first-class, thermal insulation technology, seal effect remarkable;

Design of floor trolley or ramp type, greatly reduce on the labor intensity;

Energy and power saving,strong safety performance;

Gross power：16KW(380V 50HZ)。
