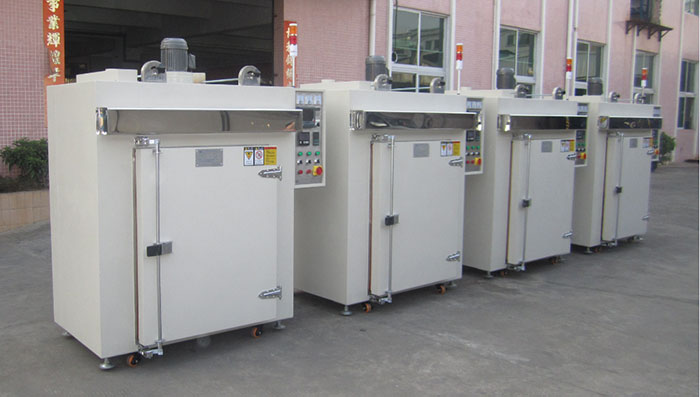

Special oven for LCD industry

Industrial oven name: LCD special oven

Inner tank size：W800*D700*H1000（mm)；

Dimension：W1400*D880*H1770 (mm)；

Temperature range：Indoor temperature-300℃（normal use）

Heating rate：Heat up to 150℃ ≈10min

Temperature uniformity：≤±3℃

Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, switch without fuse  and other electrical accessories;

Adopt  controller of intelligent temperature, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of plate in mirror 304# stainless steel. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for outer enclosure;

The internal cleanliness can reach a level of clean environment;

Double overtemperature protection, more reliable safety;

The inner hot air circulates, and the drying object is heated evenly.

Fast heating time, accurate temperature stability;

Thermal insulation of Domestic first-class , thermal insulation technology, seal effect remarkable;

Energy and power saving,strong safety performance;

Gross power：12KW(380V 50HZ)。
