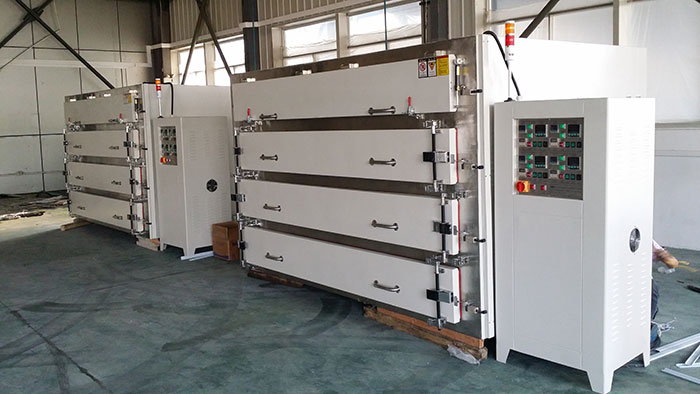

Drawer of industrial oven

Industrial oven name: drawer oven for aviation and automobile industry

Single tank size: 2600* deep 1200* high 300mm (doorway height 180mm), 4-layer independent inner tank, independent temperature control;

Dimension：W3000（Do not contain cylinder）*H1740*D1920mm（exclude door）

Temperature range：Indoor temperature~250℃（Normal use）

Heating rate：Heat up to 250℃ ≈20min

Temperature uniformity：±1.5%(no load test)

Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;

Adopt controller of intelligent temperature , PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of  platej in mirror 304# stainless steel. The argon arc welding can prevent dust from the machine.The outer enclosure is drying with a 2.0mm coat of high temperature powder

Thermal insulation of Domestic first-class , thermal insulation technology, seal effect remarkable;

Energy and power saving,strong safety performance;

Gross power：52KW(380V 50HZ)。
