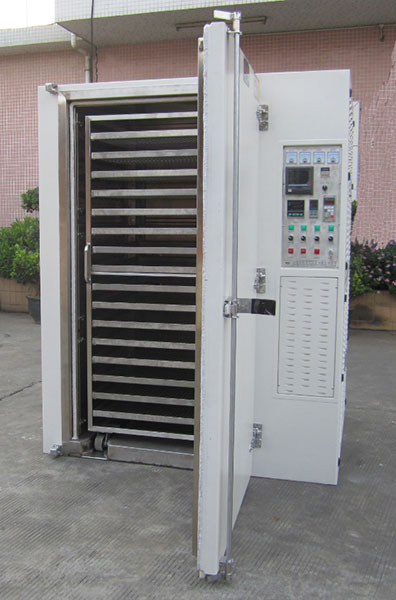

Industrial oven name: industrial oven

Inner tank size：W1000*D950*H2030（mm)；

Dimension：W1790*D1400*H2240 (mm)

Temperature range：Indoor temperature-300℃（Normal use）

Heating rate：Heat up to 300℃ ≈25min

Temperature uniformity：≤±3℃(no load test)

Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;

Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of plate in mirror 304# stainless steel. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for outer enclosure;

The internal cleanliness can reach a level of clean environment;

Double overtemperature protection, more reliable safety

Design the air duct of the oven according to the features of the product

Fast heating time, accurate temperature stability;

Thermal insulation of Domestic first-class , thermal insulation technology, seal effect remarkable;

Low enclosure temperature has little effect on indoor environment temperature

Design of floor trolley or ramp type, greatly reduce on the labor intensity;

Energy and power saving,strong safety performance

Gross power：35KW(380V 50HZ)。
