Success case of Plastic, metal painting industry

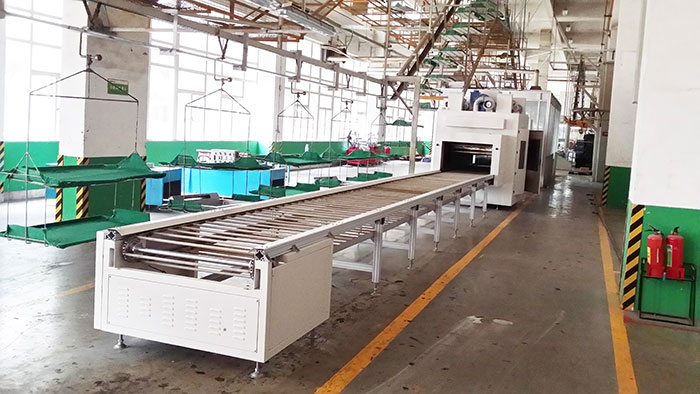

Curing UV line of 25m ink

Product name: 25m Curing UV line of ink

Dimension:L25000*W1100*H1780(mm);

Light sorce:5 set of 12KW'4 set of 5.6KW

The length of feeding zone is 4400mm, the length of discharging zone is 9000mm, the length of UV zone is 3600mm, and the screen printing zone is 8000mm.
Inside width 1000mm,Feeding port of high in 600mm

Mesh belt:all conveyor belt adopt in chain plate of stainless steel;

Material: the enclosure is made of cold-formed steel plate, and the surface is sprayed with high temperature
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Forced air cooling of UV light source , inside SUS304# and air intake filtration, good cleanliness;

Forced air cooling, combined with filter plate, to block infrared light only through ultraviolet light, low temperature;

UV lamp has stable energy and long life.

Ergonomic interface, simple and clear;

Leakage, overload, overtemperature, protection function of abnormal emergency

Gross power:90KW(380V 50HZ)。
