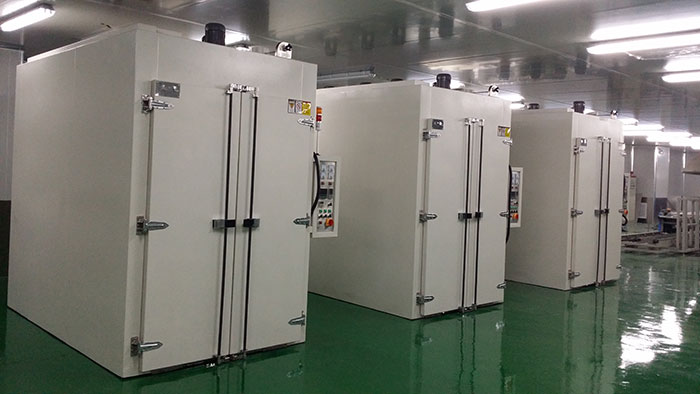

Photoelectric trolley oven
Industrial oven of Photoelectric trolley , high temperature oven
Dimension W*D*H(mm)：W2000*D1500*H1900
Inner size W*D*H(mm)：W1600*D1300*H1350
Temperature range：Indoor temperature~250℃ adjustable；
Power：23KW
Power supply：380V，Three-phase five-wire system
Temperature uniformity： ±2℃（no load test）
Air transport:air transport adopt three sides circulation
Heating method: adopt U type heat pipe of stainless steel fin which are imported from Taiwan;
Thermal insulation: 100mm thick high-temperature fiber cotton of aluminum silicate, with high-temperature sealing silica gel around the door edge;
Material: the shell is made by bending with cold plate
Inner tank: made of stainless steel plate;
Protection device: PID self-setting, automatic constant temperature, automatic timing temperature (equipped with high-precision digital display automatic timer which can be adjusted to 999 minutes/hour);after the temperature is reached, over-temperature power cut alarm, over-temperature power cut, emergency stop switch, leakage protection circuit breaker, motor overload protection, etc.;
Temperature control: adopt intelligent thermostat or equally to the brands of well-known, with PV and SV digital display window, adopt the module of continuous control heater in buffered output , subverts the passage trigger of traditional zero when impact of large current instantaneous, large fluctuations in temperature control, etc, with high cost performance E series output of thermostat of DC24V, can make the linear change in stable output voltage and temperature control effect is more stable, more excellent performance;
Electrical appliances: all other electrical appliances are used, mitsubishi, zhengtai or Omron electrical control;
