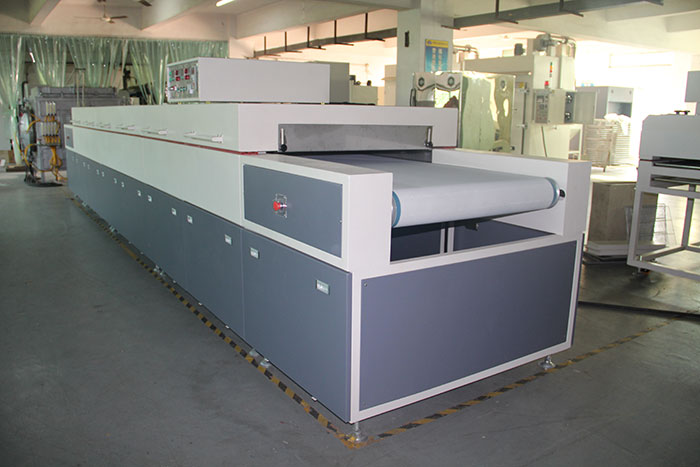

Special tunnel furnace for screen film switch
Name of product:Special tunnel furnace for film switch screen printing
Dimension:Total length8000mm*H1280mm*W1480mm,Feeding parts1000mm,Discharge area 1000mm
The drying part has a total length of 6000mm and is divided into 3 sections, each of which is 2000mm
Inner tank size of drying zone: 6000 long * 100 net height (adjustable) * 1180mm inside width
Conveyor material:Mesh belt of stainless steel ;
Temperature control: Indoor temperature to 250 ℃ can be adjustable;
Material: the enclosure adopts 2.0mm thick cold binding plate/inner tank adopts 1.5mm thick SUS304 plate of stainless steel
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Heating: SUS304# electric heat pipe 'SCR;
Mode of Air supply : hot air circulation, up and down suction;
4 parts of Temperature,temperature control and electrical chamber independently, can be controlled in sections;
Material: stainless steel in the inner chamber, electrostatic spraying of high-temperature on the outer enclosure (non-ordinary paint)
