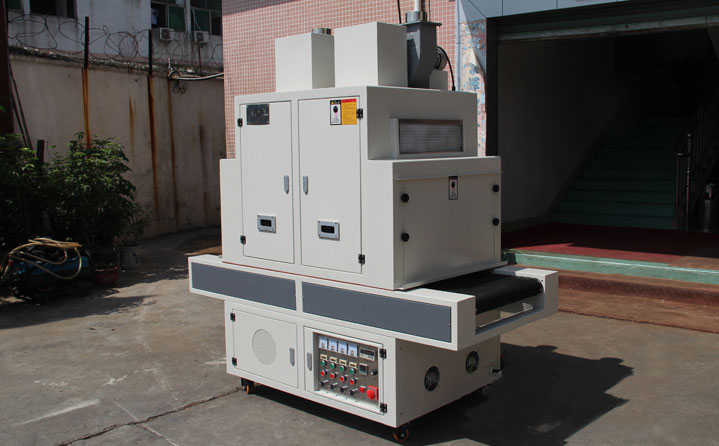

Drying UV photocementing machine of Notebook ink

1、External dimension (about) : length 2000* height 1700* width 820mm;The feeding part is 350mm long, the UV part is 1300mm long and the discharge part is 350mm long.The height of feed inlet is adjustable to 500mm and the network bandwidth is 600mm.

2、UV light source: imported British Plymouth halogen lamp;Lamp tube length =400mm, wavelength =365nm, effective light distance 240mm, a total of 4 sets, each set of 2KW;Each tube can be adjusted to 75% and 100%.

3、Curing mode: plane irradiation type;

4、Temperature range: around 50 degrees;

5、Power supply: three-phase five-wire system, 380V, 50HZ;

6、Gross power：12KW。

1、Materials: made of 2mm thick Q235 cold-rolled steel sheet (with best strength, plasticity and welding comprehensive performance), bending and welding;

2、Furnace bottom frame: it is made of 40*40*1.5mm square, and the bearing strength of each internal and external surface of the furnace can be maintained to prevent furnace deformation.

3、Sealing material: the sealing strip adopts "3M" amus adhesive, which can effectively shield the light and enhance the sealing effect;

4、Adjusting mechanism of UV lamp:adjustment mode adopt in pendant , freely adjust the height and Angle of the lamp;

5、Move castors and goblets: 4 pieces of universal wheels with brake and adjustable goblets are installed at the bottom of the oven to facilitate the movement and height adjustment;

3、Sealing material: the sealing strip adopts "3M" amus adhesive, which can effectively shield the light and enhance the

sealing effect;

4、Adjusting mechanism of UV lamp :Adjustment mode of adopt pendant, freely adjust the height and Angle of the lamp;

5、Moving castors and goblets: 4 pieces of universal wheels with brake and adjustable goblets are installed at the bottom of the oven to facilitate the movement and height adjustment;

1、Centrifugal fan: two 0.75kw centrifugal fans are installed on the top for air exhaust;

2、UV lamp adjustable function, and is equipped with independent ammeter, voltmeter, every bulb all can be adjusted up and down the height and Angle (adjustable Angle is 90 °);Each set of lamp tube is being distorted by the high temperature.independently equipped with imported quartz thermal insulation cold light sheet, which can effectively prevent the infrared heat from radiating to the product, so as to prevent the product from being distorted by the high temperature.

3、Audible and visual alarm: alarm lamp with buzzer;

4、Earthing protection: safety earthing protection of structural components.

1、The environment temperature：-5℃-40℃；

2、Relative humidity：85%RH；

3、Power supply：AC380V±10%，50Hz

Free technical training
