Successful cases of LED industry

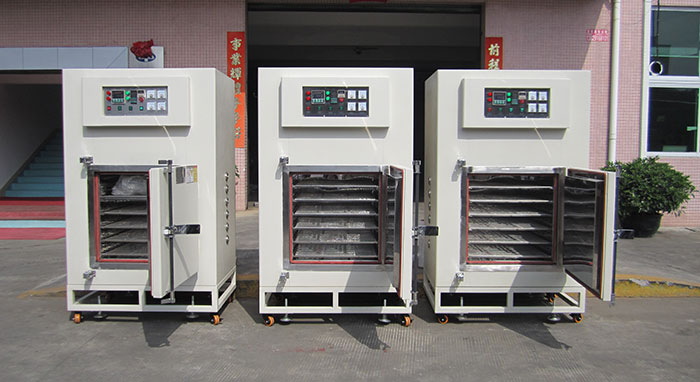

Special insulation oven for LED industry

Main technical parameters of the incubator

1、Inner size:W420*H75*D120mm;
2、Dimension(around):W620*H1250*D620mm
3、Temperature range:Indoor temperature~'250℃ Within
4、Enclosure temperature: ' 30 ℃, the temperature rise shall not exceed the environment surrounding the door.


ⅡStructure characteristics of insulation oven

1、Enclosure material:2mm thick Q235 cold rolled steel sheet (best strength, plasticity and welding comprehensive performance) bending welding production;
2、Surface treatment: surface grinding, polishing and phosphating (can increase corrosion resistance of metal and adhesion of paint);High temperature spray (large corrugated) to prevent rust and corrosion.The color is "computer grey".
3、Inner tank material: made of 1.5mm thick SUS304 stainless steel plate to keep the tank clean and free of dust, rust and corrosion;
4、Oven fram: made by 40*40*2.0mm square pass, with side sealing plate 2.0 cold plate;The bearing strength of the inner and outer sides of the oven shall be maintained, and the coefficient of thermal expansion and cold contraction shall be retained to prevent the enclosure from deformation.Oven body underframe made of storage cabinet form.
5、Material of Thermal insulation:Aluminum silicate cotton of 100K encrypted ;Features such as non-combustible, strong heat insulation, thickness of 100mm;
6、Sealing material: the sealing strip is made of foamed silica gel, which can withstand temperature without deformation, and the door and inner tank are double-layer sealed to enhance sealing effect;
7、Door: single door, installed with 2 latching locks, high temperature resistant silica gel bars are installed on the door frame, double-layer sealing is provided, and a brace bar is provided for each side of the door to be manually turned up.
8、Move casters: 4 pieces of universal wheel with brake are installed at the bottom of the oven body to facilitate the movement and fixation of the oven.
