Successful cases of battery capacitor industry

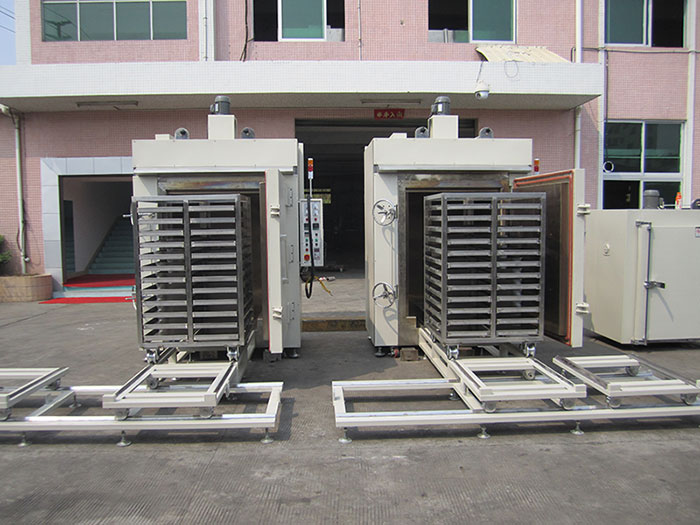

Battery industry oven
Industrial oven name: Battery industry oven
Inner size:W1000*D900*H1400(mm)
Dimension:W1800*D1180*H2220 (mm)
Temperature range:Indoor temperature-500℃(Normal use)
Heating rate:Heat up to 450℃ ≈45min
Temperature uniformity:±1.5%(no load test)
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Intelligent temperature controller, PID automatic calculation, LED display, and SSR solid-state relay output can be used to accurately control the accuracy of temperature;
The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.The outer enclosure is drying with a 2.0mm high temperature powder coat
The internal cleanliness can reach a level of clean environment;
Double overtemperature protection, more reliable safety;
The hot air circulates of inner, and the drying object is heated evenly.
Fast heating time, accurate temperature stability;
Thermal insulation in domestic first-class, thermal insulation technology, seal effect is remarkable
Low temperature of body shell has little effect on indoor environment temperature.
Energy and power saving,strong safety performance;
Gross power:30KW(380V 50HZ)
