Successful cases of battery capacitor industry

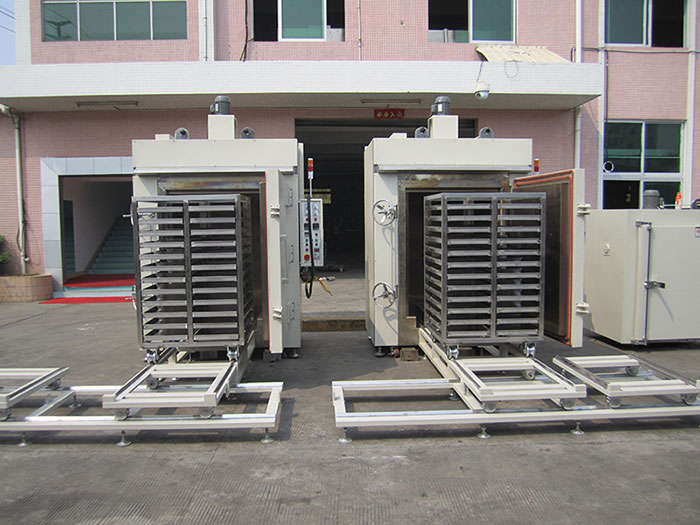

Battery industry oven
Industrial oven name: battery industry oven
Inner size：W1000*D900*H1400（mm)
Dimension：W1800*D1180*H2220 (mm)
Temperature range：Indoor temperature-500℃（normal use）
Heating rate：Heat up to 450℃ ≈45min
Temperature uniformity：±1.5%(no load test)
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.
The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.The outer enclosure is drying with a 2.0mm high temperature powder coat
The inner hot air circulates, and the drying object is heated evenly.
Fast heating time, accurate temperature stability;
Domestic first-class thermal insulation, thermal insulation technology, seal effect remarkable;
Low temperature of body shell has little effect on indoor environment temperature.
Energy and power saving,strong safety performance;
Gross power：30KW(380V 50HZ)
