Successful cases of silicon rubber industry

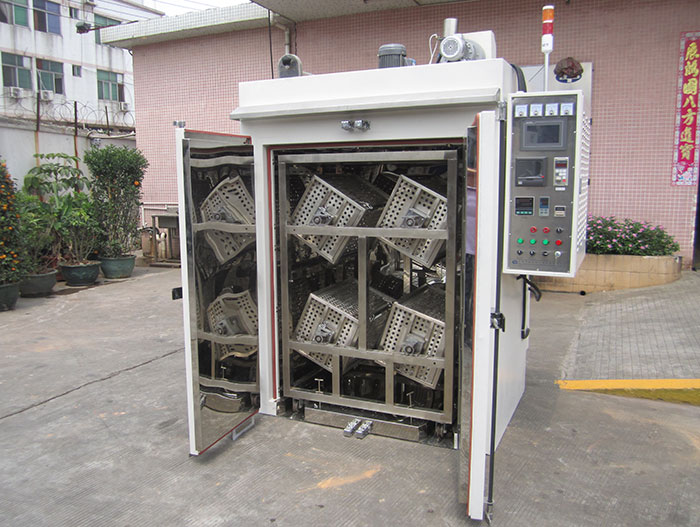

Secondary sulphur of Rotary curing industrial oven
Industrial oven name: secondary sulphur curing oven
Inner size：W1200*D1000*H1600（mm)
Dimension：W1600*D1140*H2080（Including motor2360） (mm)
Temperature range：Indoor temperature-100℃（normal use）
Heating rate：Heat up to 150℃ ≈10min
Temperature uniformity：±3℃(no load)
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.
The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for outer enclosure.
The internal cleanliness can reach a level of clean environment;
Double overtemperature protection, more reliable safety;
Design the air duct of the oven according to the features of the product
Fast heating time, accurate temperature stability;
Domestic first-class thermal insulation, thermal insulation technology, seal effect is remarkable
Low temperature of body shell has little effect on indoor environment temperature.
Design of floor trolley or ramp type, greatly reduce on the labor intensity;
Energy and power saving,strong safety performance;
Gross power：20KW(380V 50HZ)。
