Successful cases of silicon rubber industry

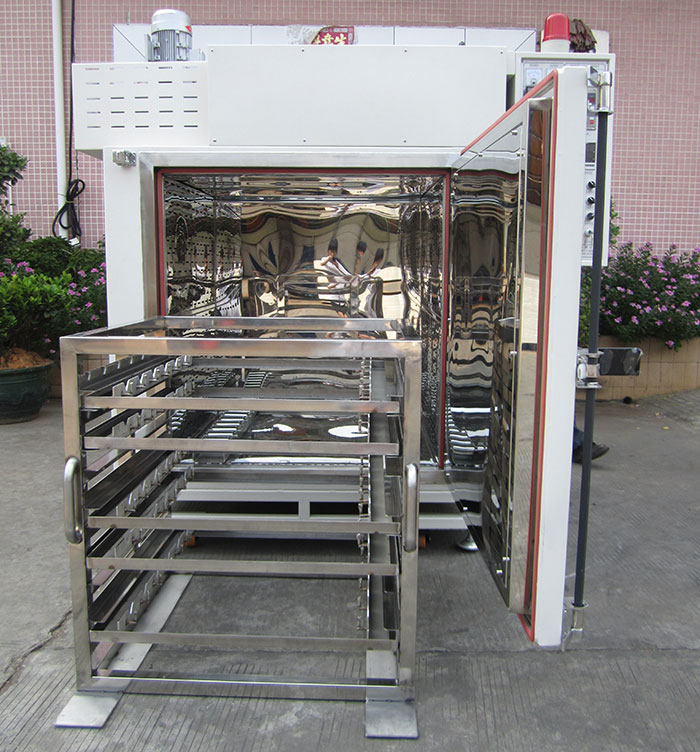

Secondary sulphur of Silicon rubber curing industrial oven
Inner size:W600*D500*H600(mm)
Dimension:W1000*D630*H1460 (mm)
Temperature range:Indoor temperature-250℃(Normal use)
Heating up:Heat up to 250℃ ≈25min
Temperature uniformity:≤±3℃(no load test)
Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;
Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.
The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.High temperature powder paint with
2.0mm cold binding plate for outer enclosure;
The internal cleanliness can reach a level of clean environment;
Double overtemperature protection, more reliable safety;
Design the air duct of the oven according to the product features, with good temperature uniformity;
Fast heating time, accurate temperature stability;
Domestic first-class thermal insulation, thermal insulation technology, seal effect remarkable;
Low temperature of body shell has little effect on indoor environment temperature.
Design of floor trolley or ramp type, greatly reduce on the labor intensity;
Energy and power saving, strong safety performance
Gross power:5KW(380V 50HZ)。
