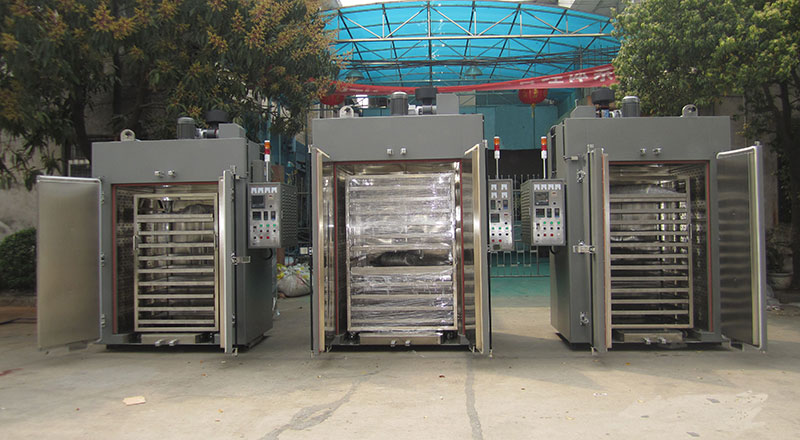

High temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber
Main technical parameters of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber

1、Inner size:W600*H400*D600mm;
2、Dimension(around):W1160*H1040*D800mm;
3、Temperature range:Indoor temperature~'350℃ adjustable;
4、temperature fluctuation:≤±1℃;
5、Temperature uniformity:≤±1.5%℃(no load);
6、Heating rate:≤8℃/min;
7、the shell temperature: shell temperature is not higher than room temperature ' 20 ℃, except the seams around the door;8、Circulating air mode: a large amount of forced air circulation in horizontal circulation is greater than or equal to 300 m3 / h;
9、Power supply: three-phase five-wire system, 380V, 50HZ;
10、Gross power:8KW。


ⅡConstructional features of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber

1、Shell material: it is made of 2mm thick Q235 cold-rolled steel sheet (with best strength, plasticity and welding comprehensive performance), which is bent and welded.
2、Surface treatment: surface grinding, polishing and phosphating (can increase corrosion resistance of metal and adhesion of paint);High temperature spray (large corrugated) to prevent rust and corrosion.The color is "computer grey".
3、Inner material: made of 2.0mm thick SUS304 stainless steel plate to keep the tank clean, free from dust, rust and corrosion;
4、Enclosure frame: the enclosure body is made of 50*50*3mm Angle iron to maintain the bearing strength of each internal and external surface of the enclosure, and keep the heat expansion and cold shrinkage coefficient to prevent the enclosure body from deformation.
5、Thermal insulation material: 100K encrypted aluminum silicate cotton;Features such as non-combustible, strong heat insulation, thickness of 150mm;
6、Sealing material: the sealing strip is made of silica gel, which can withstand temperature without deformation, and the door and inner tank are in double-layer sealed to enhance sealing effect;
7、Ventilation device: the upper part of the enclosure is provided with air inlet and air outlet;Φ 90 mm diameter, adjustable air flow, make the furnace temperature is uniform;
8、Door: single door. Install 2 chrome plated reinforced hinge pieces on the right to prevent door sagging.
9、Moving casters: 4 pieces of universal wheel with brake are installed at the bottom of the enclosure to facilitate the movement and fixation of the oven;
10、Layer frame: stainless steel movable layer frame is set inside the chamber, evenly divided into two layers, and the layer distance can be adjusted arbitrarily;
11、Pallet: the frame is made of 1.5mm stainless steel plate, with curved edges inside. The size is 590*590*40mm.

Ⅲ Control system of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber

1、Air motor: 1 edeley 0.37kw air motor in Taiwan;
2、Wind wheel: 9 inch multi-wing stainless steel air wheel;
3、Heating pipe: adopt u-shaped heating pipe of SUS304 stainless steel made in Taiwan, with heat radiator, which can make the temperature of heating pipe evenly
distributed;
4、Air heating method: air is pumped from the air inlet of the oven to the air groove of the heating pipe. Air is circulated in the oven after being heated, and the exhaust gas is discharged from the exhaust port.
5、Temperature controller: Omron digital temperature controller is adopted, with PV and SV dual LED display functions;With PID automatic tuning algorithm output, precise control;
6、Protection thermostat of Ultra-temperature : the thermostat, PV and SV in function of double LED display, PID automatic setting module continuous buffering output, control heater;
7、Time control: LED digital display time controller can be set to the maximum time of 99 hours, and the unit can be arbitrarily switched to hours, minutes and seconds.
8、Heating tube control: each group of heating tube is controlled by SSR solid relay;
9、Temperature sensor: standard of Omron 3-meter, k-type thermocouple;
10、Others: the control appliances are under the schneider brand to ensure the normal operation of the equipment and reduce the equipment failure caused by accessories problems.

Ⅳ Fuction of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber

1、Automatic constant temperature: the thermostat can calculate the output power automatically with PID according to the temperature value set by the user. The closer the temperature is to the set value, the smaller the output power will be.
2、Timing function: the timing is divided into two levels (manual/automatic) : start timing immediately when manual is selected;The time will start when the temperature must reach the set temperature value.Sound and light alarm and stop automatically when time is reached.
3、Over-temperature alarm: when the actual detection temperature exceeds the setting value of the over-temperature protection thermostat, automatically cut off the heating power, playing dual protection function;
4、Audible and visual alarm: alarm lamp with buzzer.
5、Ground protection: safety ground protection of structural components.
6、Phase loss of power and phase sequence protection: equipped with phase sequence protector.

Ⅴ Environmental condition of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber

1、The ambient temperature:-5℃-40℃;
2、Relative humidity:≤85%RH;
3、Power supply:AC380V±10%,50Hz;

Ⅵ Training of high temperature curing oven in 350degrees for Secondary sulphur of Fluorine rubber
Free technical training
