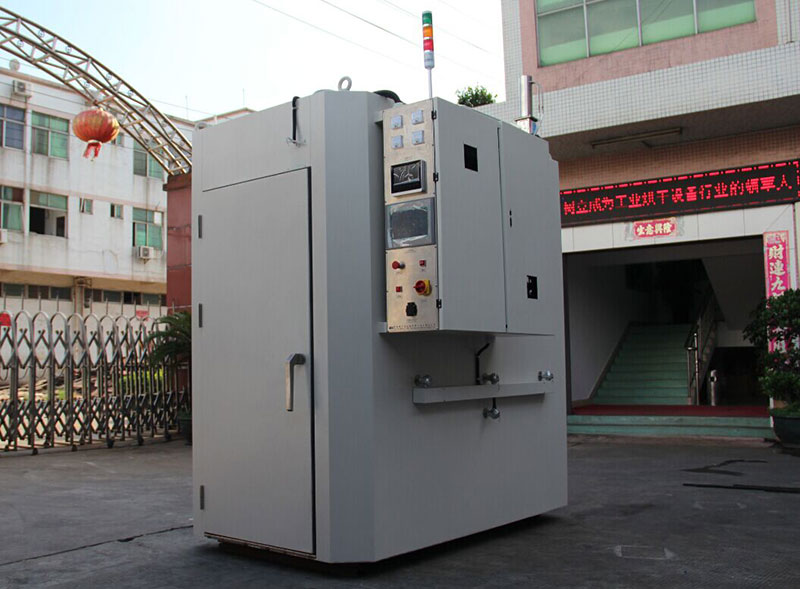

Vulcanization of Silicone rubber product in double door push oven
ⅠMain technical parameters of the double door push in vulcanization of silicone rubber products
1、Inner size：W750*H1820*D2130mm；
2、Dimension（around）：W1290*H2300*D2330mm；
3、Temperature range：Normal temperature～'250℃ adjustable；
4、Temperature fluctuation：≤±1℃；
5、Temperature uniformity：≤±5℃(no load)
6、Heating rate：≤8℃/min；
7、The enclosure temperatue：Temperature rise does not exceed the environment Door perimeter exception；8、Circulating air mode: a large number of forced air in horizontal circulation;
9、Power supply: three-phase five-wire system, 380V, 50HZ;
10、Gross power：36KW；
ⅡThe structural features of the double door push oven in vulcanization of silicone rubber products
1、Shell material: it is made of 2mm thick Q235 cold-rolled steel sheet (with best strength, plasticity and welding comprehensive performance), which is bent and welded.
2、Inner material: Plate of 1.5mm SUS304 stainless steel is adopted to keep the inner clean, free from dust, rust and corrosion, easy to clean.
3、sealing material, Sealing strip adopts imported ￠25 mm high temperature ceramic fiber in packing production, door adopt double seal form and tank, strengthens the sealing effect, make the door
close around the joint seam, not leak the heat.
Ⅲ The control system of the double door push oven in vulcanization of silicone rubber products
1、Air transport motor: 3 sets of air transport motor (0.75kw) at edeley, Taiwan;
2、Wind wheel:Stainless steel wind wheel of multi-wing in 10.5-inch;
3、Heating pipe: adopt u-shaped heating pipe of stainless steel made in Taiwan, with radiator, which can make the temperature of heating pipe evenly distributed;
4、Air heating method: air is pumped from the air inlet of the oven to the air groove of the heating pipe. Air is circulated in the oven after being heated,
and the exhaust gas is discharged from the exhaust port.
5、Air pressure detection: the air pressure sensor is provided in both the air outlet of the oven and the internal air outlet , which can effectively detect whether the air transport parts are in normal operation.
6、Touch screen: use Siemens 10-inch touch screen and American PACOOLOGIC temperature control module, Siemens PLC control temperature and program, PID automatic setting module continuous buffering output;
7、Time control: adopt PLC to control the time, the maximum time can be set as 99 hours, and the unit can be arbitrarily switched to hours, minutes and seconds.
8、Control of heating tube: control each group of heating tubes with non-contact SSR solid relay;
9、Temperature sensor:Standard type of omron in 3-meter, k-type thermocouple;
Ⅳ The function of the double door push oven in vulcanization of silicone rubber products
1、Automatic temperature: the temperature controller can be set according to the temperature value set by the user;PID is used to calculate the output power automatically. The closer the temperature is to .the set value, the smaller the output power will be
2、Over-temperature alarm: when the actual detection temperature exceeds the setting value of the over-temperature protection thermostat, automatically cut off the heating power and double protection function;
3、Audible and visual alarm: alarm lamp with buzzer
4、Earthing protection: safety earthing protection of structural components.
5、Phase loss and phase sequence protection of power supply: equipped with phase sequence protector;
Ⅴ The environmental conditions of the double door push oven in vulcanization of silicone rubber products
1、The environment temperature：-5℃-40℃
2、Relative humidity：≤85%RH；
3、Power supply：AC380V±10%，50Hz；
Ⅵ The training of the double door push oven in vulcanization of silicone rubber products
Free technical training
