Glass, solar photovoltaic industry success case

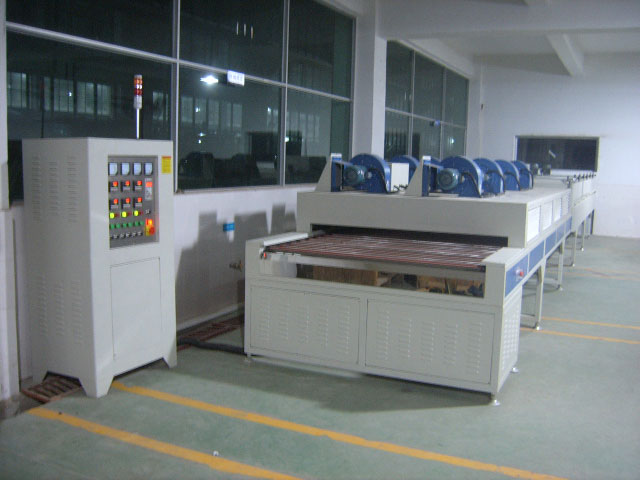

Tunnel drying furnace with multicolor glass screen printing

Tunnel furnace of Glass screen printing, Tunnel furnace of acrylic board screen printing, Tunnel furnace of drying line for energy building materials.
Scope of application: glass screen printing, screen printing of acrylic board, energy materials, battery powder, advertising decoration, building materials and other industries;

Dimension:L*W*H(mm)23280*1970*1510;
Width of Conveyor Belt width:1600mm
Height of feed inlet: 120mm, adjustable
Belt height from ground
Drying zone length: 6 sections, each 2 meters
Cooling zone: 2 sections, each 1.5 m

Conveyor belt material: 1.5 mm thick stainless steel SUS304 # flat production, flat between the center distance of 152.4 mm, control of temperature: 250 ℃ Material: Exterior in 2.0mm thick cold tie plate /Inner tank in 1.5mm thick stainless steel plate 304.
(KVA)Power:120KW
Power supply:AC380V 3Φ 50HZ ;
Heating material:Carbon fiber heating pipe of far infrared
Protection device:Device of timing alarm power cut off, over-temperature power cut off,breaker of leakage protection circuit,protection of motor overload, the chain is equipped with anti-card dead and alarm device.


Product features of tunnel furnace for acrylic screen printing , tunnel furnace of energy building materials drying line.

1、Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid-state relay output, which can precisely control the accuracy of temperature;
2、The inner chamber is made of 1.5mm thick SUS304 # stainless steel, and the outer chamber is made of 2.0mm cold-tied plate with high temperature plastic spraying;
3、Each flat pass is provided with a "U" slot, with a built-in high-temperature foamed silica gel bar, which can effectively prevent product from being scratched when passing through.
4、Inner and outer material SUS304# stainless steel, good cleanliness;
5、Open design, light and simple;
6、Unique cooling device can greatly improve production efficiency.
Note: you can customize according to your requirements, and sincerely welcome new and old customers to visit the company and exchange guidance!
