Glass, solar photovoltaic industry success case

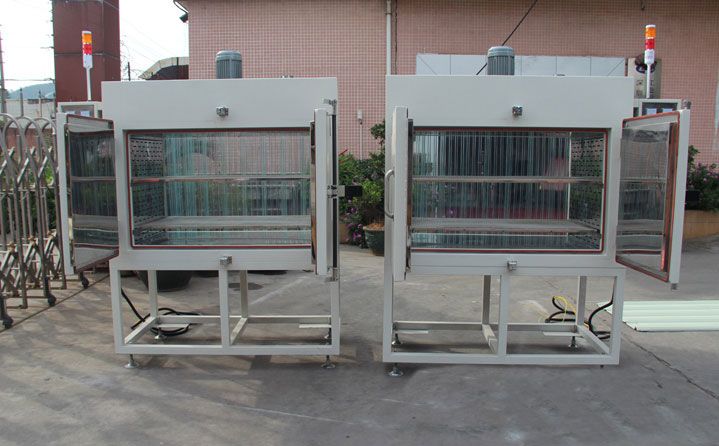

Special oven for safe glass industry----St.Helens
Industrial oven name: safe glass oven

Inner size:W1150*D700*H700(mm);
Dimension:W宽1450*D深800*H1820 (mm)
Temperature range:Indoor temperature'20℃~60℃;
Heating rate:≥8℃/min


Protection device: PID self-setting, automatic constant temperature, automatic timing, timing alarm&power off when the temperature arrives, over-temperature power off, leakage protection, motor overload protection, control line fuse, no fuse switch and other electrical accessories;

Adopt intelligent temperature controller, PID automatic calculation, LED display and SSR solid relay output, which can precisely control the accuracy of temperature.

The inner liner material is made of mirror 304# stainless steel plate. The argon arc welding can prevent dust from the machine.High temperature powder paint with 2.0mm cold binding plate for outer chamber;

Door: front and rear door;The front side is double door, open from the middle to both sides, and install a chrome-plated and explosion-proof square steel lock on the right side.Back side is transparent
glue curtain, can pull open directly.

Fast heating time, accurate temperature stability;

Domestic first-class thermal insulation, thermal insulation technology, seal effect remarkable;

Low shell temperature has little effect on indoor environment temperature.

Energy saving, power saving and strong safety performance;

Gross power:9KW(380V 50HZ)。
