Auto parts, aircraft high-speed rail case

Automobile fittings high temperature oven

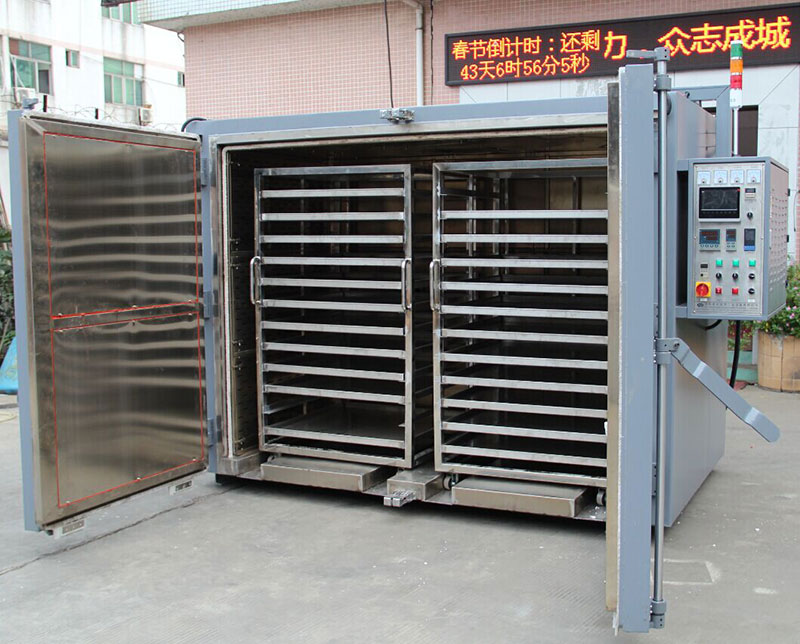

Automobile sealing element high temperature oven
It is widely used in the fields of baking, drying, tempering, preheating, shaping and processing under different temperatures in aerospace, electrical and electronics, auto parts and materials industries.
For example: automobile engine cover, door frame, front and rear wind window, suitcase, skylight, door head way, glass window guide slot, and inner and outer side bar (water cutting) seal use.


Technical parameters:

Dimension(mm):W2300*D2700*H2300;
Inner size(mm):W1900*D2500*H1800;
Temperature range:Indoor temperature~250℃ adjustable;
Power:44KW;
Power supply:380V ,Three-phase five-wire system;
Temperature uniformity: ±3℃(no load test);
Air transport mode: The air transport of left-right circulation;
Heating method:The heat pipe adopted in U type of stainless steel from Taiwan.
Thermal insulation: 100mm thick aluminum silicate fiber cotton in high-temperature, sealing silica gel around the door edge;
Material: the shell is made of 2.0mm cold plate, and the surface of the whole machine is sprayed with high-temperature plastics (non-ordinary oil injection). Inner tank: 201 # 1.5 ㎜ thick stainless steel plate making;

Protection device: PID self-setting, automatic constant temperature, automatic timing temperature (equipped with high-precision of digital display&automatic timer which can be adjusted to 999 minutes/hour); Overtemperature power cut alarm when temperature reaches, over-temperature power off, over-temperature power cut, emergency stop switch, leakage protection circuit breaker, motor overload protection, etc.;

Temperature control: Taiwan microcomputer intelligent digital thermostat equipped with PV and SV digital display Windows, continuous buffered output control heater, SSR solid relay output.Subverts the traditional zero passage trigger when large current instantaneous impact, large fluctuations in temperature control, etc, with high cost performance E series of 4-20 ma output type in thermostat, can make the stable output voltage linear change and temperature control effect is more stable, more excellent performance, according to the error of temperature automatically adjusts the size of the output size) make more precise temperature;

Electrical appliances: all other electrical appliances are used, mitsubishi, zhengtai or omron electrical control;
