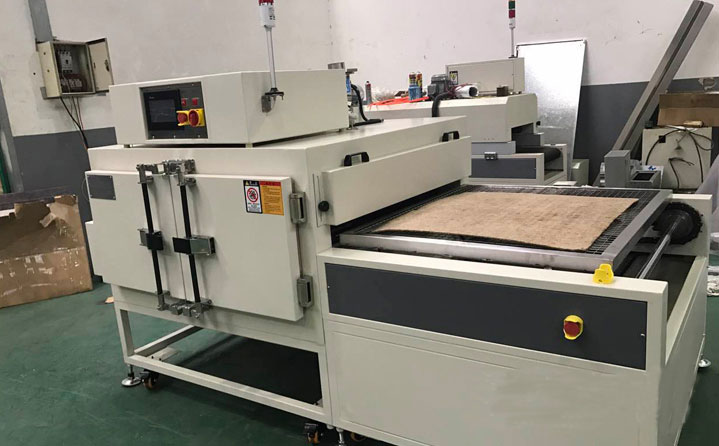

Infrared hemp board conveyor oven
One、Main technical parameters of infrared flax conveyor type oven
1、Inner size:District heating1.3M*H0.1M*W1.1M;
2、Dimension(约around):L2.4M*H1.5M*W1.25M;The conveying surface is 0.84m±0.025m high from the ground
3、Temperature range:Indoor temperature~'300℃;
4、Temperature fluctuation:≤±1℃;
5、Temperature uniformity:≤±3℃;
6、Heating rate:≥10℃/min;
7、Shell temperature:Enviromental temperatures not exceeding'10℃。
8、Circulating air mode: constant temperature of air exhaust at the top;
9、Power supply: three-phase five-wire system, 380V, 50HZ;
10、Power: total power: 20KW;
Two、The the structure features of infrared sisal board conveyor oven
1、shell material: using 1.5 ㎜ cold plate bending, surface phosphating, paint treatment, corrosion resistant easy to clean.;
2、Inner material: made of 1.4mm thick SUS304 stainless steel plate;Keep the inner tank clean and free of dust, prevent rust and corrosion
3、Furnace bottom frame: made by 50*50*2.0mm square pass;The bearing strength of internal and external furnace surface is maintained, and the thermal expansion and cold shrinkage coefficient is retained to prevent furnace deformation.
4、Thermal insulation material: 100K encrypted aluminum silicate cotton;The thickness is 120mm.
5、oot cup: the bottom is equipped with adjustable foot cup, which is convenient to adjust the height of the chamber;Equipped with universal casters for easy movement;
Three、The enviromental conditions of infrared flax board conveyor oven
1、The environment temperature:0℃~'40℃;
2、Relative humidity:≤85%;
3、Power supply:AC380V±10%,50Hz;
Four、Infrared hemp board conveyor oven training
Free technical training.
