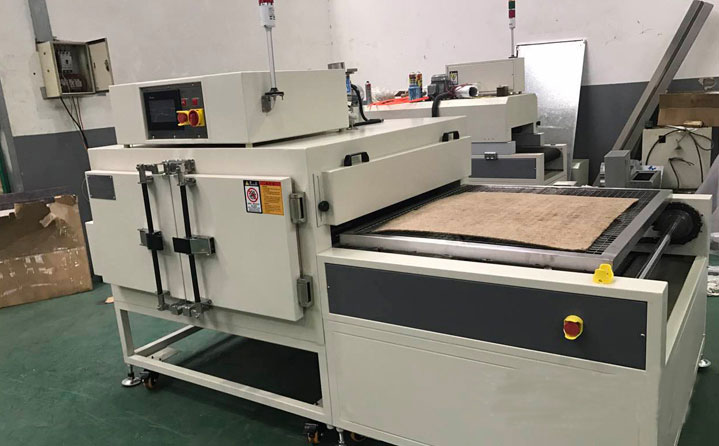

After softening automotive interior parts, press the molding tunnel furnace drying line
ⅠThe main technical parameters of drying line of the tunnel furnace after softening automobile interior decorations
1、Technological process:
1.Production:ECOCOR plate,sizeL1100*W880mm;
2.Technological process:ECOCOR plate dying in the oven to 120 s,reach to 200 ' 3 ℃, the heating zone has four stations put hemp board.
3.Feeding and taking: feeding and taking by mechanical hand.
4.Feeding area ECOCOR plate transport deviation ± 2mm
5.Inner size:Heating zone length: 5600* feed inlet height: 100* inner tank width: 1300mm;
6、Dimension(around): L8000*H1530*W1800mm;feeding area1200mm,heating area5600mm,discharge area1200mm;The conveyor belt is high off the ground 900mm
temperature range:indoor temperature~'320℃;
temperature fluctuation:±1℃;
Furnace temperature difference:±3℃;
Heating rate:10℃/min
Shell temperature:No more than the environment temperature ' 15 ℃, juncture place around.
Hot air circulation mode: circulation of large air on three sides, top out and bottom back;
Power supply: three-phase five-wire system,380V,50HZ;
Power:80KW;
ⅡThe structure characteristics of the drying line furnace of the tunnel furnace after softening the automobile interior decoration
1、Shell material: it is made of 2.0mm Q235 cold-rolled steel plate with the best strength, plasticity and welding comprehensive performance.
2、Inner material: made of 1.5mm thick SUS304 stainless steel plate;
3、Foot cup: equipped with adjustable foot cup, which is convenient to adjust the height and level of the chamber;
Ⅲ The control system of drying line of tunnel furnace after softening automobile interior decoration is pressed
1、 Air transport motor: 6 Siemens air transport motors with 0.75kw;
2、Air conveying windwheel: 1 piece of 10.5-inch stainless steel air conveying windwheel for each motor, 6 pieces in total;
3、Heating pipe: adopt u-type heating pipe of SUS304 stainless steel made in Taiwan, with radiator fin, which can make the temperature of heating pipe evenly distributed;
4、Speed control: 750W schneider servo motor, frequency control with Taiwan adly inverter, digital display panel, adjustable transmission speed of 15m-28m/min
(about 5S can be transported to the next station);
Ⅳ The environment condition of drying line of tunnel furnace after softening automobile interior decoration
1、Enviroment temperature:0℃-40℃;
2、Relative humidity:85%RH;
3、Power supply:AC380V±10%,50Hz;
