Composite materials, a successful case in the new material industry

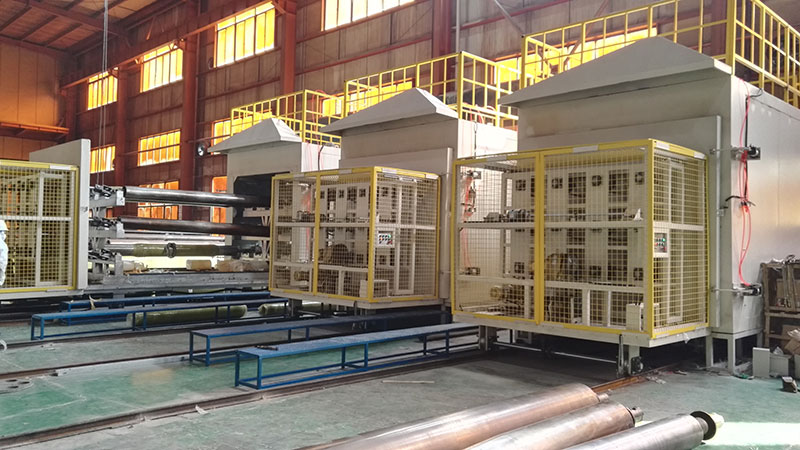

Insulating composite material electric and gas curing oven

ⅠTechnical specifications and parameters of insulating composite electric and gas curing oven

1、Furnace inner size: 2100 wide, 1900 high (on the trolley), 5000mm deep;
2、Dimension:W2700,H4100,D5100;
3、Temperature:Design temperature 200℃,operating temperature in 170℃;
4、Temperature control precision: ±1℃
5、Temperature uniformity:  ±2.5% (air furnace thermostatic test).


ⅡUse environment of insulating composite materials for electric and gas curing oven equipment

1、Power supply: 380V, 50HZ three-phase five-wire system;
2、In-plant use: temperature: -10 to 40 degrees;
3、Working system: 3 shifts, 8 hours per shift, working no less than 300 working days per year, working 24 hours continuously.

Ⅲ Notes for electric and gas curing oven of insulating composite materials:

1、Pay attention to the shell color;
2、Inner liner in galvanized sheet;
3、Dual use of electricity and natural gas;
4、Docking of product rotation mechanism;
5、The heating block at the bottom of the oven, and the track is installed on the ground.
