Composite materials, a successful case in the new material industry

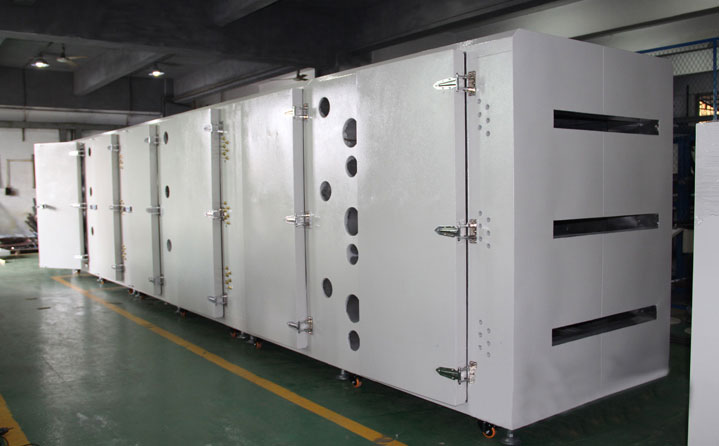

Hot air jet multilayer tunnel furnace
ⅠMain technical parameters of multi-layer tunnel furnace with hot air injection
1、Inner size：W1300*H1700*D9300mm；
2、Dimension（around）：W1600（Does not contain the fan）*H2200*D9600mm；
3、Temperature：indoor～'350℃ adjustable（300℃Customers to use temperature 300 ℃）；
4、temperature fluctuation：≤±1℃；
5、heating rate：≤8℃/min；
6、The shell temperature: the enviromental temperature should be not more than 15 ℃, except surrounding the door.
7、Circulating air mode: hot air jet circulating air;
8、Power supply: three-phase five-wire system，380V，50HZ；
9、Gross power：150KW。
ⅡStructure characteristics of the furnace chamber of multi-layer tunnel with hot air injection
1、Shell material: made by bending and welding of 2.0mm cold-rolled steel plate (with best strength, plasticity and welding comprehensive performance);
2、Surface treatment: surface grinding, polishing and phosphating (can increase corrosion resistance of metal and adhesion of paint);
High temperature spray (large corrugated) to prevent rust and corrosion.The color is "computer grey".
3、Inner material: made of 1.5mm thick SUS304 stainless steel plate to keep the tank clean and free of dust, rust and corrosion;
4、Roller: use 45# steel to process the coating of teflon on the grinding surface;
5、Chamber frame: the chamber body is made of 50*50*3mm Angle iron and channel steel to maintain the bearing strength of the inside and outside of the chamber body and retain the heat expansion and cold shrinkage coefficient to prevent the chamber body from deformation.
6、Thermal insulation material: 100K encrypted aluminum silicate cotton;Features such as non-combustible, strong heat insulation, thickness of 150mm;
7、Sealing material: the sealing strip is made of asbestos and can withstand temperature without deformation. The door and the inner tank are sealed in a double layer to enhance sealing effect.
8、Air changing device: the furnace body is provided with natural air outlet, air outlet pipe and manual air regulating valve.
9、Air knife: 3 above the single layer of the furnace body, 5 below, a total of 8 air knives;
10、Door: single door, 6 doors on both sides of tunnel furnace, 12 doors in total, which is convenient for products to be put through and drying.3 chrome plated and reinforced hinge pieces are installed on each door to prevent door sagging.
Ⅲ Control system of multi-layer tunnel furnace with hot air injection
1、Electric cabinet: equipped with independent control cabinet;
2、Air motor: 4KW high pressure centrifugal fan, hot air jet circulating air (9 sets);
3、Heating pipe: adopt u-shaped heating pipe of SUS304 stainless steel made in Taiwan, with heat radiator, which can make the temperature of heating pipe evenly distributed;
4、Air heating method: air is fed into the air groove of heating tube by the feeding port of tunnel furnace. After heating, air is transported by air knife nozzle in the oven for circulation, so as to make the temperature control more precise and uniform.
5、Temperature-controlled thermostat: it adopts Taiwan xuanrong H961 digital thermostat, with PV and SV dual LED display functions;With PID automatic tuning algorithm output, precise control;
Separate the upper, middle and lower layers independently control the temperature (more precisely control the temperature uniformity of the Chamber);
6、Ultra-temperature protection thermostat: adopt intelligent temperature controller, PV and SV double LED display function.
When the temperature exceeds the setting value of ultra-temperature protection thermostat, automatically cut off the heating power.
7、Control of heating tube: each group of heating tube is controlled by Taiwan silicon SCR SCR;
8、Temperature sensor: omron 3-meter standard type, k-type thermocouple;
9、Others: all the control appliances are under the schneider brand;
ⅣFunction of multi-layer tunnel furnace with hot air injection
1、Automatic constant temperature: the thermostat can calculate the output power automatically with PID according to the temperature value set by the user;When the temperature is close to the set value, the lower the output power, so as to achieve the purpose of thermostatic control and energy saving;
When the temperature is close to the set value, the lower the output power, so as to achieve the purpose of thermostatic control and energy saving;
2、Over-temperature alarm: when the actual detection temperature exceeds the setting value of the over-temperature protection thermostat, automatically cut off the heating power and double protection function;
3、Audible and visual alarm: alarm lamp with buzzer.
4、Earthing protection: safety earthing protection of structural components.
5、Phase loss and phase sequence protection of power supply: equipped with phase sequence protector.
Ⅴ Environmental conditions of multi-layer tunnel furnace with hot air injection
1、Environmental temperature：-5℃-40℃；
2、Relative humidity：≤85%RH；
3、Power supply：AC380V±10%，50Hz；
Ⅵ Hot air jet multilayer tunnel furnace training
Free technical training.
